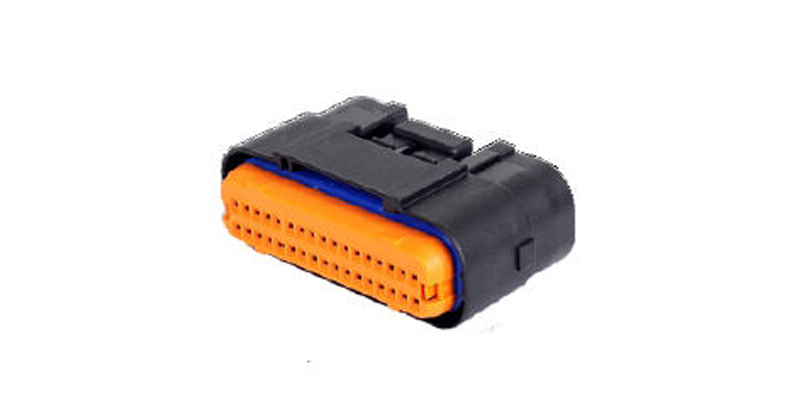

JH0001034FBA-A
MX23A Series (040),Wire to Borad,Pitch 2.5,2 ROW,34P,Female,waterproof connector,PBT+30%GF Black
Product Introduction
MX23A connector is a compact, low-profile, waterproof connector that can be used in a wide range of waterproof equipment including automobiles, motorcycles and other outdoor equipment.
This connector has high environmental capability with a waterproof structure consisting of a seal ring in its mating area and a grommet in its wire insertion area for full protection against water.
Parameter
| Product type Features | Series | MX23A(040) | Products Category | Wire to Board |
| Male/Female | Female | Pitch(mm) | 2.5 | |
| Configuration Features | Row | 2 | Number of Positions | 34 |
| Applicablewire range | - | Applicable Contacts | JT00010DPS-2/JT01010EPS-2 | |
| Receptacle Style | - | Mating Connector | JW0001034MBA-A | |
| Specifications and Features | Material-Plastic | PBT+30%GF | Flame retardancy | UL 94-HB |
| Material-Metal | - | Plating | - | |
| Color | Black | |||
| Packaging Features | Packling | Bag | SPQ | 336 |
| Other Features | Waterproof | IP67 | Original Factory Model | MX23A34SF1 |
| Electrical Features | Rated current | 3A | Rated voltage | - |
| Operating Temperature | -40-120°C | Withstand Voltage | 1000V/AC 1Mintue | |
| Contact resistance | 10mΩ Max | Insulation resistance | 100MΩ Min |
