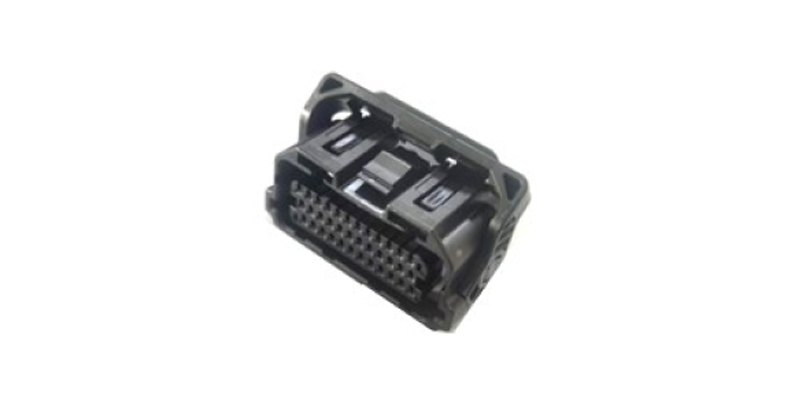

XH0206436FBA-A
ZRO Series,Wire to Borad,Pitch 2.55,3 ROW,36P,Female,waterproof connector,PBT+30%GF Black
Product Introduction
ZRO series of sealed connectors is a highly reliable, IP67 water-proof level, multi-pin connector with signal and power contacts. Meanwhile it offers board side device connector, and cable side socket connector total connection solutions. It can meet QC/T 1067.1 and USCAR-21 reliability standards. The connector is dedicated for harsh environmental usage. Various customer specific designs (e.g. different coding) are possible. It can supply multi-way proposal for customer’s Choice (eg. 36 and 48 ways). The inflaming class is UL94-V0.
Parameter
| Product type Features | Series | ZRO | Products Category | Wire to Board |
| Male/Female | Female | Pitch(mm) | 2.55 | |
| Configuration Features | Row | 3 | Number of Positions | 36 |
| Applicablewire range | AVSS 0.5-0.75 | Applicable Contacts | XT01064DPS-2/XT02064EPS-2 | |
| Receptacle Style | - | Mating Connector | XW0206448MBA-A | |
| Specifications and Features | Material-Plastic | PBT+30%GF | Flame retardancy | UL 94-V0 |
| Material-Metal | - | Plating | - | |
| Color | Black | |||
| Packaging Features | Packling | Bag | SPQ | - |
| Other Features | Waterproof | IP67 | Original Factory Model | 36ZRO-B-1A |
| Electrical Features | Rated current | 3A | Rated voltage | - |
| Operating Temperature | -40-120°C | Withstand Voltage | 1000V/AC 1Mintue | |
| Contact resistance | 10mΩ Max | Insulation resistance | 100MΩ Min |
